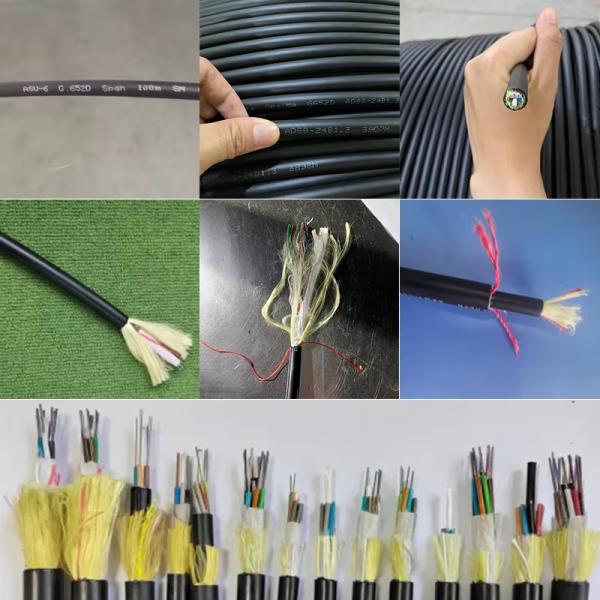

Single Jacket ADSS Communication Cable Span 50M to 200M

Name: Single Jacket ADSS Communication Cable Span 50M to 200M
Brand: PUNAISGD
Price: 1 USD

Cheap Single Jacket ADSS Communication Cable Span 50M to 200M for sale

Brand Name : PUNAISGD

Model Number : ADSS-72B1.3-60m

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Type : ADSS-72B1.3-60m

Application : Telecom Comunication

Strength member : kevlar

Jacket color : Black Color

Packing : Wooden drum

Number of conductors : 72 cores

Fiber type : G652D

Outer sheath : PE/AT,AT/PE,PE

Span : 60

Name : ADSS Fiber Optic Cable

Contact Now

Single Jacket ADSS Communication Cable Span 50M to 200M

How to select the right ADSS cable?

Selecting the right ADSS (All-Dielectric Self- Supporting) cable involves considering several key factors to ensure it meets the specific requirements of your project. Here's a guide to help you make the right choice:

Span Length:
Choose based on the distance between support structures; Short spans like 80m, longer spans up to 700m.
Fiber Count:
Decide on the number of fibers(6,12,24,48,96,144) needed for your data transmission requirements.
Fiber type:
Most popular is G.652.D Environmental Conditions: Consider factors like wind, ice, and UV exposure to determine the need for protective sheathing.
Proximity to Power Lines:
Ensure the cableʼs electrical characteristics are safe for installation near power lines.
Mechanical Loads:
Evaluate the cableʼs tensile strength and weight for installation and environmental stress resistance.
Cable Diameter and Weight:
Balance strength with the limitations of installation and support structures.

All Dielectric Self-Supporting Cable
ADSS Fiber Optic Cable	Single Jacket ADSS Cable For 50M to 200M Span
	Double Jackets ADSS Cable For 200M to 1500M Span
	12/24/48/96 Core 100M SPAN ADSS SM G652D Cable
	No Metal FRP ADSS Fiber Optic Cable 300m 400m Span
	ADSS 48FO 100M 200M SPAN Outdoor Aerial Fiber Optical Cable
	HDPE 6/12/24/48/96/144 Core ADSS Fiber Cable With Aramid Yarn
	600M 800M 1000M Span Aerial ADSS Outdoor Fiber Optic Cables With Aramid Yarn
	24 Core ADSS Fiber Optic Cable, G652D, 120m Span

1. What is ADSS All Dielectric Self Supported Optical Cable?

Aramid Yarn G652D ADSS Communication Fiber Optic Cable, adopts loose-jacketed stranded structure. Single-mode or multimode optical fiber is jacketed into a loose tube made of high-modulus plastic, and the tube is filled with water-repellent compound. Loose tube (filling rope) is twisted around the central nonmetallic reinforcement (FRP) to form a compact circular cable core, the gap in the cable core is filled with water-blocking filler, and the cable core is twisted with a layer of aramid fiber for reinforcement, and finally a polyethylene sheath or an electric trace-resistant outer sheath is extruded.

2. Different kinds of ADSS cable:

Single sheath: structure--FRP+Aramid yarn+Outer sheath

Double sheath: structure--FRP+Inner sheath+Aramid yarn+Outer sheath

PRODUCT SPECIFICATIONS

Optical Characteristics

Item	Contents	Value
Item	Fiber Count	24	48	72	96	144
Loose Tube	No. of tubes*fiber per tube	4*6	4*12	6*12	8*12	12*12
Loose Tube	Outer Diameter(mm)	2.1	2.5

Item		G.652	G.655	50/125um	62.5/125um
Attenuation	@850nm			≤3.0dB/km	≤3.2dB/km
	@1300nm			≤1.0dB/km	≤1.2dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHZ.km	≥200MHZ.km
Bandwidth	@1300nm			≥1000MHZ.km	≥600MHZ.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-oﬀ wavelength		≤1260mm	≤1450mm
